Description

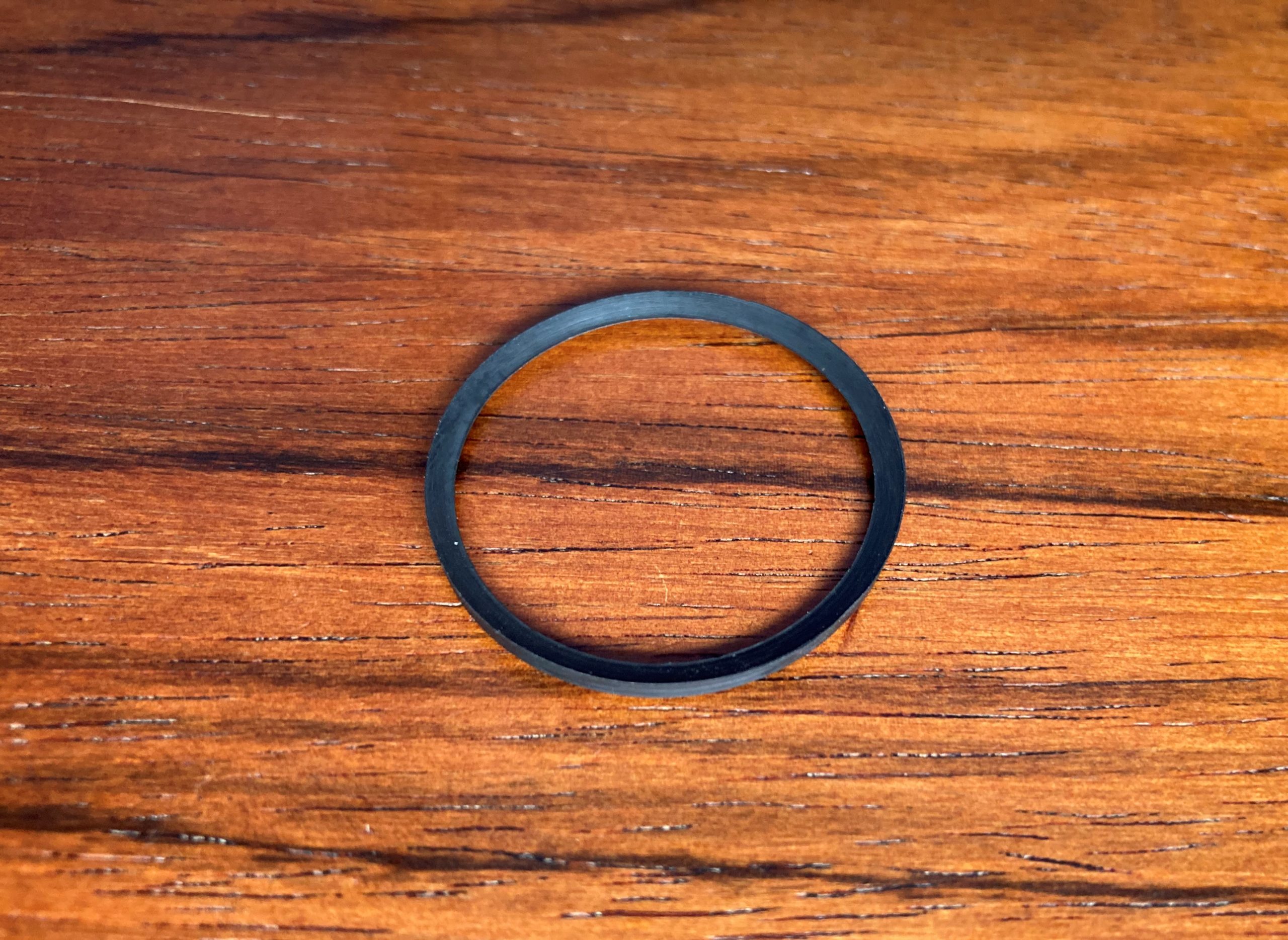

Correct triangular / wedge-shaped belt for the tracking servo motor in the following Bang & Olufsen Beogram tangential record decks:
Beogram 6002
Beogram 6006
Beogram 8000
Beogram 8002
Beogram TX
The original belt is wedge-shaped (triangular cross-section) for the simple reason that it requires less torque to run around the small diameter pulley on the servo motor than a similar square or round belt. No square or round (cross-section) belt will run as the original part.
A belts elasticity and friction is always very important, but even more so is the choosing of rubber material with the correct density for this belt. Easy running is essential in allowing the tonearm carriage a nice and smooth travel and avoid any jerking motions during playback.
This belt is exactly like the original; Correct shape, correct size, correct friction, correct elasticity, correct density.
This belt is a direct replacement for original Bang & Olufsen part# 2732045
Note: This belt is not like most other belts. In order to function as intended and achieve correct properties regarding
friction parameters, to prevent the transferring of vibrations etc., it was custom produced to unique specifications.
As a result, it has a very limited elasticity.
Please avoid excess stretching of this belt when fitting it. Don’t pull it like you would an elastic band.
Note: This belt has been revised july 2024 because it was found that the previous belt was a bit too sensitive to correct handling when fitting, resulting in limited functional lifespan.
The rubber composition was changed slightly to make it more like a “normal” belt.
Customers experiencing problems with our previous belt are encouraged to contact us.
BS-025
