Description
New electrolytic capacitors for the power supply filtering (& reservoir) in the following Bang & Olufsen models:
Beomaster 5000 (Type 23xx)
Beomaster 5500
Beomaster 6500
Beomaster 7000
The original capacitors have a limited life-span, and even if the vast majority of the original components fitted by Bang & Olufsen proved to be of a very high quality, providing surprisingly good performance for decades, they are all now more than 30 years old and if not already replaced it’s safe to say that all Beomasters of the above models would benefit from having their filter capacitors replaced by now.
This kit contains a pair (2 pcs.) of factory new electrolytic capacitors in superb quality to replace the old and dried out components.
Custom manufactured exclusively for Danish Sound Parts these are slit-foil type electrolytic capacitors with the correct capacitance and voltage ratings, the correct solder lug type and the correct diameter to fit the original holder. In other words, these are direct replacements.
Slit-foil electrolytics is the absolute best choice for hardworking areas like power supplies in HiFi products, where every detail counts in every part of the product, so slit-foil capacitors is the obvious choice for the filtering job in these excellent receivers.
The slit-foil construction minimizes the eddy currents forming on the foil surfaces of conventional capacitors. This means less loss and better response.
It also means, that these capacitors are not just replacements. They are in fact improvements.
One set contains two capacitors. Enough for one Beomaster.
These are direct replacements for original Bang & Olufsen part# 4200530 (10.000uF 50V/63V).
Note:

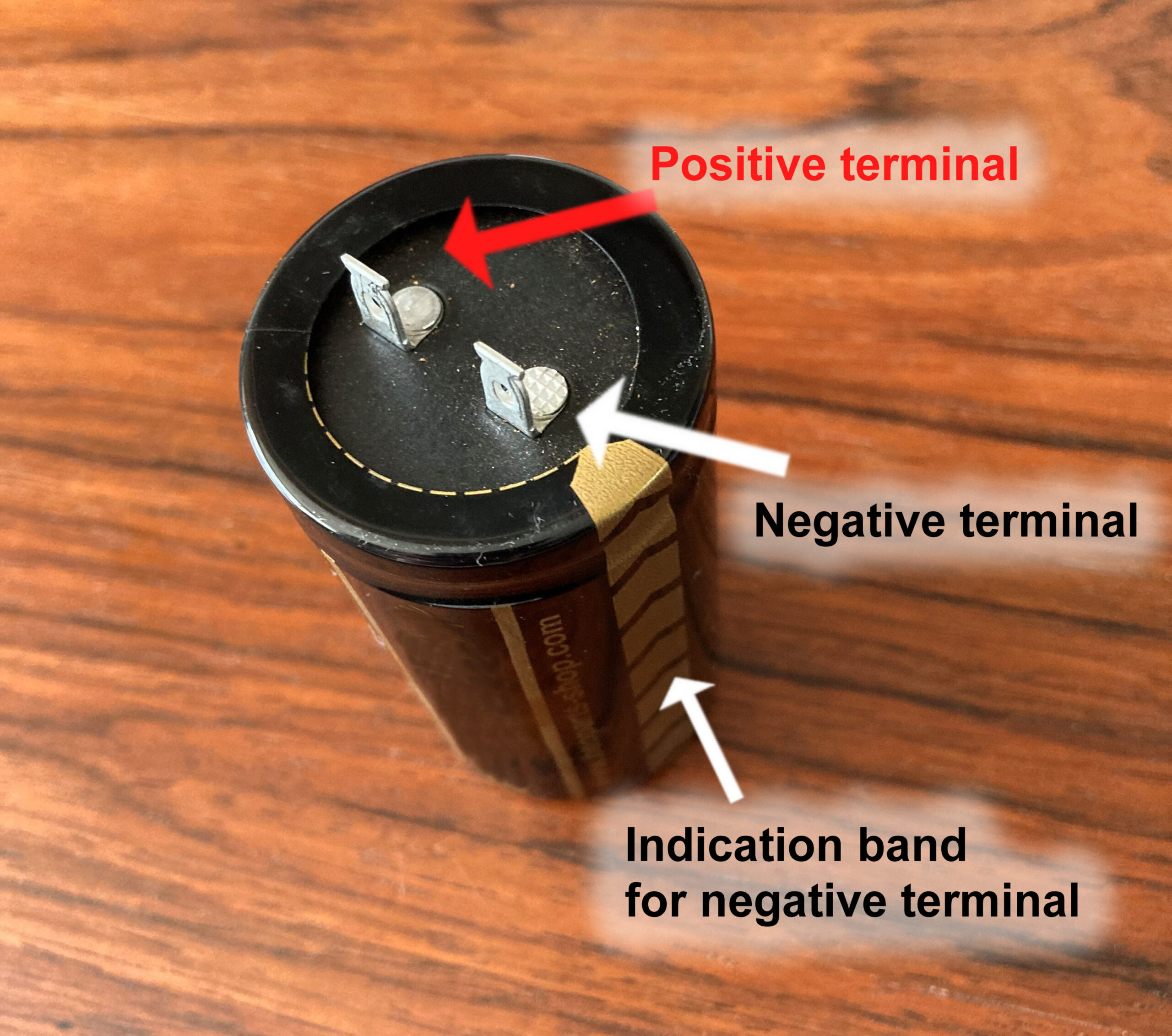

For polarity, please refer to the second photo.
CK-095
