Description
New electrolytic capacitors for the power supply filtering (& reservoir) in Bang & Olufsen Beomaster 6000 (types 22xx only).
The original capacitors have a limited life-span, and even if the vast majority of the original components fitted by Bang & Olufsen proved to be of a very high quality, providing surprisingly good performance for decades, they are all now close to 40 years old and if not already replaced it’s safe to say that all Beomaster 6000s of the above mentioned types would benefit from having the filter capacitors replaced by now.
This kit contains a factory new pair of capacitors in superb quality to replace the old and dried out components.
Custom manufactured exclusively for Danish Sound Parts these are slit-foil type electrolytic capacitors of the correct shape and size with the correct solder lug type. In other words, these are direct replacements.
Slit-foil electrolytics is the absolute best choice for hardworking areas like power supplies in HiFi products where every detail counts in every part of the product, so slit-foil capacitors is the obvious choice for the filtering job in the above mentioned models.
The slit-foil construction eliminates the eddy currents forming on the foil surfaces of conventional capacitors. This means less loss and better response.
It also means, that these capacitors are not just replacements. They are in fact improvements.
Further to this, the new capacitors maximum voltage rating was upgraded a little from 63V to 80V, adding a slight bit of head-room and a healthy bit of lifespan.
One kit contains two capacitors. Enough for one Beomaster 6000.
These are direct replacements for original Bang & Olufsen part# 4200412
(Component designators 16C20 and 16C21)

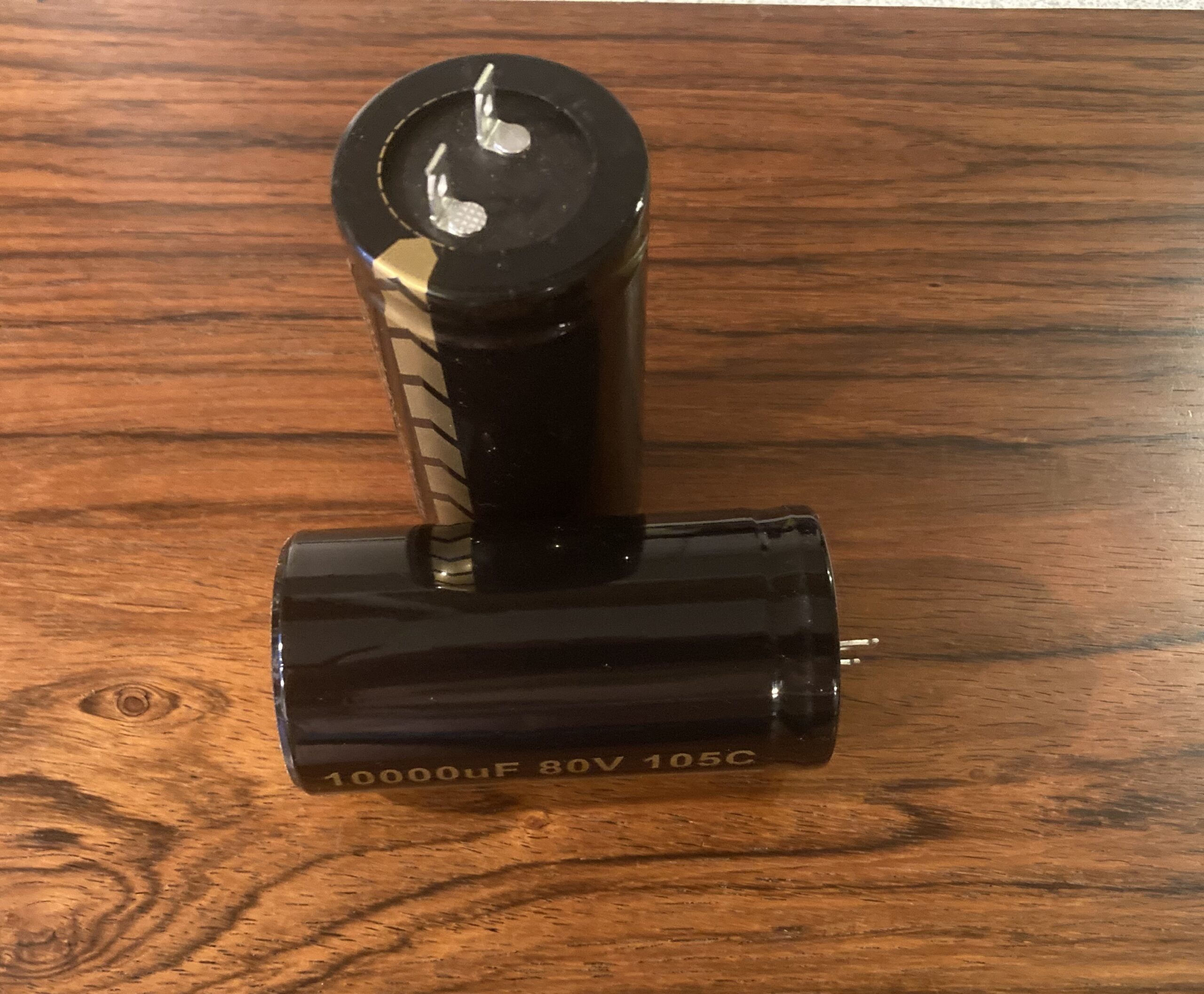

Note: For polarity reference please refer to the photos in the gallery.
CK-077
