Description
Convienient electronic service kit for the following Bang & Olufsen models:
Beocenter 3300
Beomaster 2200
This kit is for the trained tech or skilled DIY person about to do a complete restoration job to one of the above mentioned classic design receivers.
Basically, this kit takes care of the vast majority of electronic components prone to failure due to aging.
This kit includes new components for:
– All radial, axial and tantalum electrolytic capacitors, including the large power supply filter capacitors
– All adjustment trimmers
This kit contains factory fresh high-quality components.
Every component in the kit has been carefully selected for its specific position in the circuit to
ensure reliability and long component life while preserving the correct warm vintage sound.
The large filter capacitors are high quality and high efficiency slit-foil types manufactured exclusively for Danish Sound Parts. They are correct sizes to fit their respective original holders.
The opportunity was taken to upgrade the output series capacitors from 5000uF (occasionally 4700uF) to 5600uF which will give a slight improvement to both the damping factor and the lower frequency response.
This kit comes with detailed component location charts (photos of boards with clear markings etc.)
Basic electronic knowledge, skills, tools and instruments is required to replace the components in this kit.
A servicemanual for your exact type of unit is also required for alignment references etc.
Note:

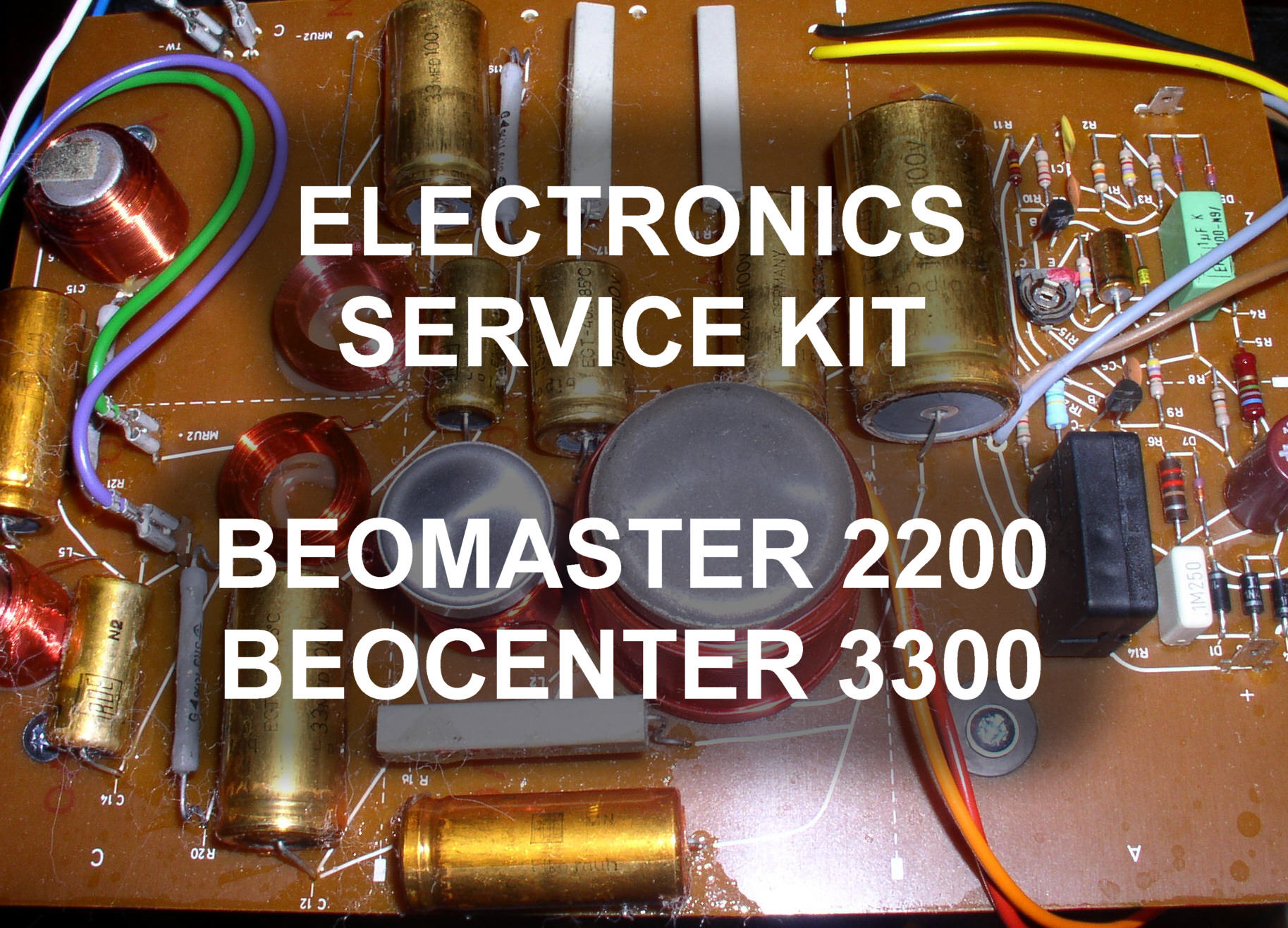

The photo is merely for illustration, the kit contains more than 55 components!
Note:
An amount of high quality solder is needed for this job. Go here to find it.
SK-038
